  • Brand Name: XCSOURCE
Product Description



Features:

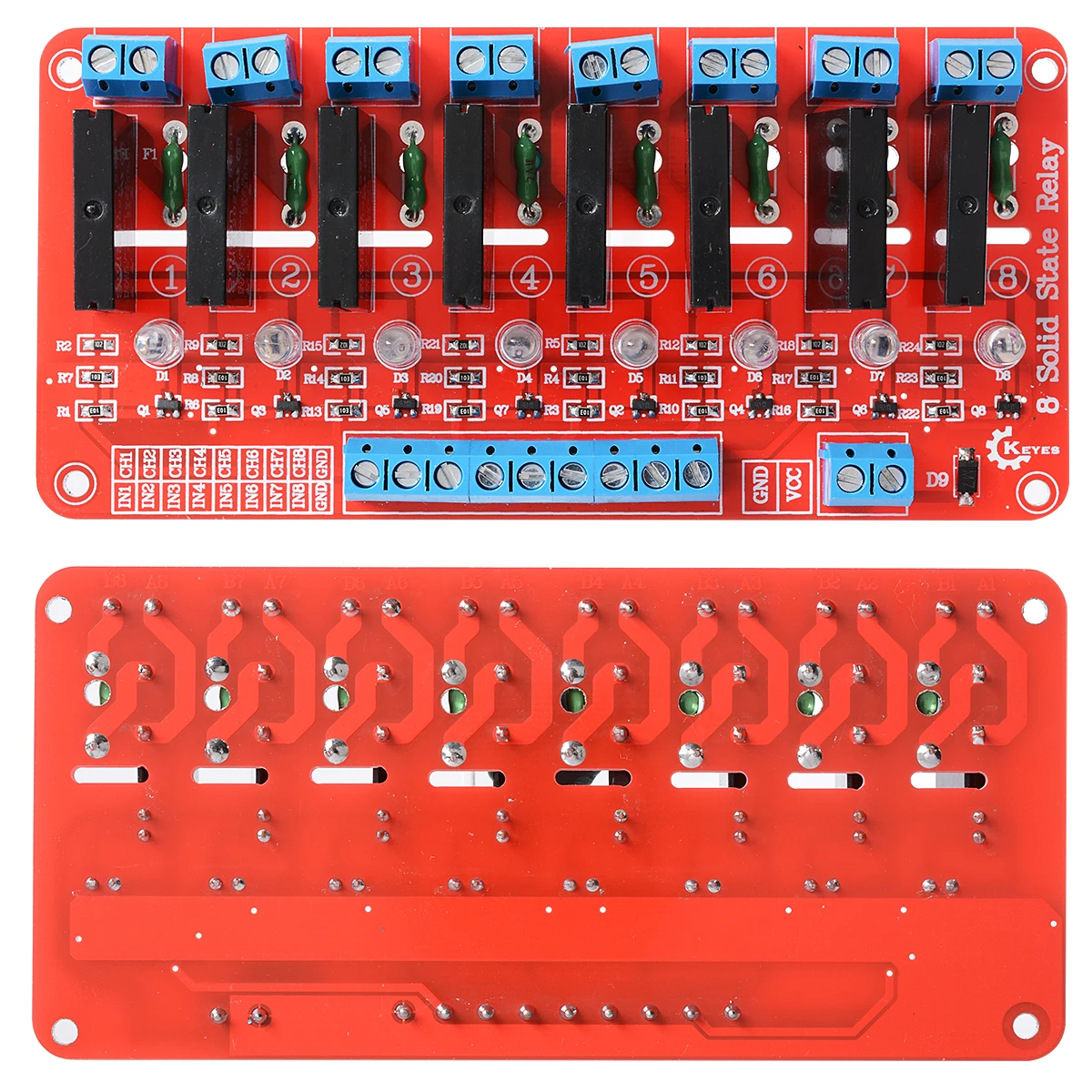

 8-channel 2 AMP Solid State Relay board
 Control 8 loads of up to 2 amps each at 120V or 240V AC.
 Good for lighting, Holiday displays etc.
 With 8 Solid State Relays: 2A at 100 to 240VAC.(50/60Hz)
 Size:130x 60x 15mm
 Power supply: 5V DC(160mA)
 Input control signal voltage
(0-0.5V low stage SSR is OFF)
(2.5-20V high stage SSR is ON)

Power supply:

 5VDC / 160mA (all channel ON).
 Input control signal voltage:
0V - 0.5V Low stage (SSR is OFF),
0.5V – 2.5V (unknown state).
2.5V - 20V High state (SSR is ON).

SSR Specifications:

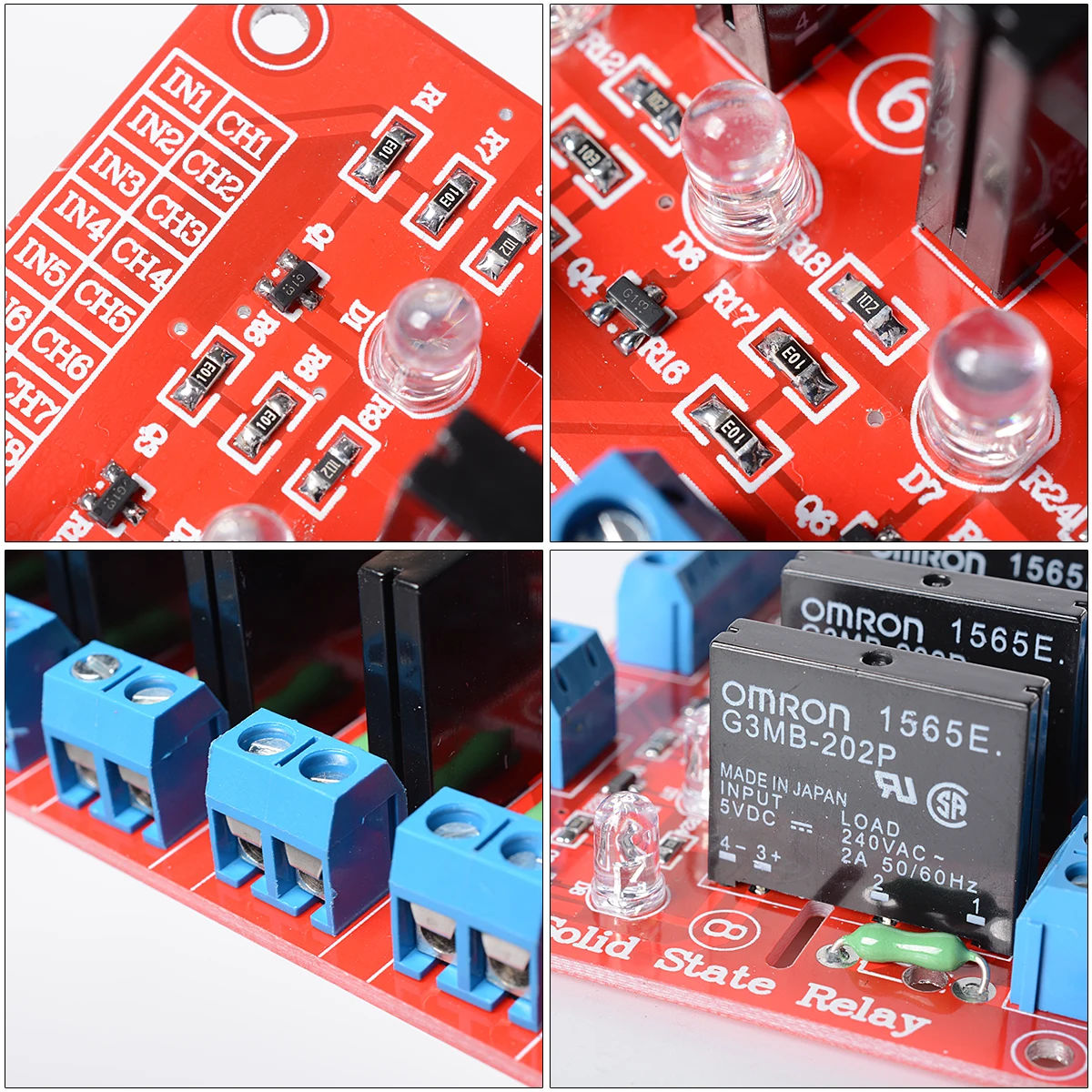

Part number: G3MB-202P, 5V version.
Isolation: Phototriac.
Zero cross: Yes.
Rated output load: 2A at 100 to 240VAC.(50/60Hz).
Load type: General purpose.

Module interface:

Input section:
DC +: positive power supply (relay voltage power supply)
DC-: connect power negative
CH1: 1 signal to trigger the end of the relay module (low level trigger valid)
CH2: 2-way relay module signal triggering end (low level trigger valid)
CH3: 3 relay module signal triggering end (low level trigger valid)
CH4: 4-channel relay module signal triggering end (low level trigger valid)
CH5: 5-way relay module signal triggering end (low level trigger valid)
CH6: 6-way relay module signal triggering end (low level trigger valid)
CH7: 7-way relay module signal triggering end (low level trigger valid)
CH8: 8-channel relay module signal triggering end (low level trigger valid)

Voltage version quiescent current working current trigger voltage trigger current

1 channel 5V 0mA 13.8mA 2.5-5V 2mA
2-way 5V 0mA 26.8mA 2.5-5V 2mA
3-way 5V 0mA 37mA 2.5-5V 2mA
4 5V 0mA 48mA 2.5-5V 2mA
5-way 5V 0mA 59mA 2.5-5V 2mA
6-way 5V 0mA 70mA 2.5-5V 2mA
7 Road 5V 0mA 81mA 2.5-5V 2mA
8 5V 0mA 90mA 2.5-5V 2mA

Package included:

 1X 8 Channel SSR Solid State Relay Module
